GearUP 8-Way DC PV Combiner Box with MCB, Fuse & SPD (IP65 Waterproof)

GearUP DC PV Combiner Box in Bangladesh

Get the GearUP 8-Way DC PV Combiner Box in Bangladesh at koddax Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

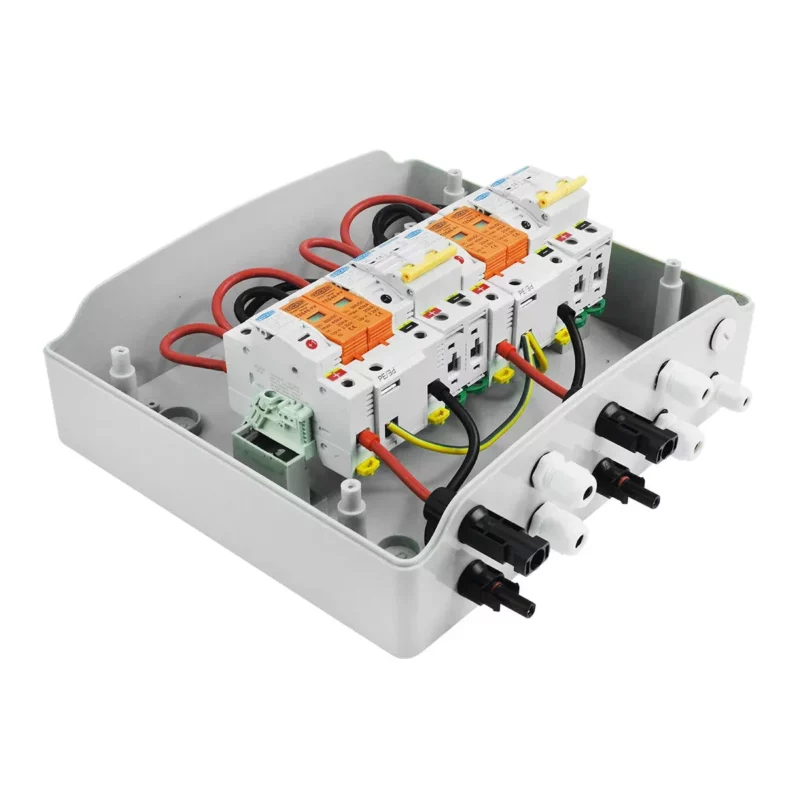

The GearUP 8-Way DC PV Combiner Box is designed for reliable solar power system integration. It combines DC inputs from up to 8 solar panel strings into a single output, featuring built-in protection components including Miniature Circuit Breakers (MCB), fuses, and Surge Protection Devices (SPD). Its IP65-rated waterproof enclosure ensures durability in outdoor environments. Ideal for residential and commercial solar installations, this combiner box enhances system safety and efficiency.

-Cable Entry: PG glands and MC4-compatible ports
-06 months replacement Warranty
-Strings Supported: 8 In / 1 Out
-DC Voltage Rating: Up to 600V DC
-DC MCB: 2-pole, rated for overcurrent protection
-Fuse Holder: 600V DC, 10x38mm fuse link for each string
-Enclosure: IP65 waterproof,
-Operating Temperature: -25°C to +60°C
-Cable Entry: PG glands and MC4-compatible ports

Key Description:

• Combines up to 8 solar panel strings into a single DC output
• Integrated 2-pole DC MCB and fuse protection for each string
• Type 2 SPD safeguards against voltage surges caused by lightning or switching
• IP65-rated, weather-resistant enclosure suitable for indoor and outdoor use
• Compatible with MC4 connectors and standard solar cables

Features & Specifications:

• Strings Supported: 8 In / 1 Out
• DC Voltage Rating: Up to 600V DC
• DC MCB: 2-pole, rated for overcurrent protection
• Fuse Holder: 600V DC, 10x38mm fuse link for each string
• Surge Protection Device: Type 2, 600V DC surge handling
• Enclosure: IP65 waterproof, UV resistant, made of fire-retardant ABS/Polycarbonate
• Operating Temperature: -25°C to +60°C
• Mounting: Wall or panel mount with included brackets
• Cable Entry: PG glands and MC4-compatible ports

Benefits:

1. Ensures safe and reliable connection of multiple solar panel strings
2. Prevents damage from overcurrent and short circuits with resettable MCBs and quick-replace fuses
3. Protects sensitive solar equipment from voltage spikes using SPD
4. Durable waterproof design suitable for harsh weather conditions
5. Simplifies solar system wiring and maintenance

Pros:

-High-quality protection components integrated

-Weatherproof and UV-resistant enclosure for outdoor use

-Easy to install and maintain with wall or panel mounting options

-Compatible with common solar connectors and cables

-Compact design saves space in solar installations

Cons:

-Limited to 8 input strings, may not suit very large solar arrays

-Requires basic electrical knowledge for installation and maintenance

-SPD protects against Type 2 surges but may need additional protection for extreme conditions

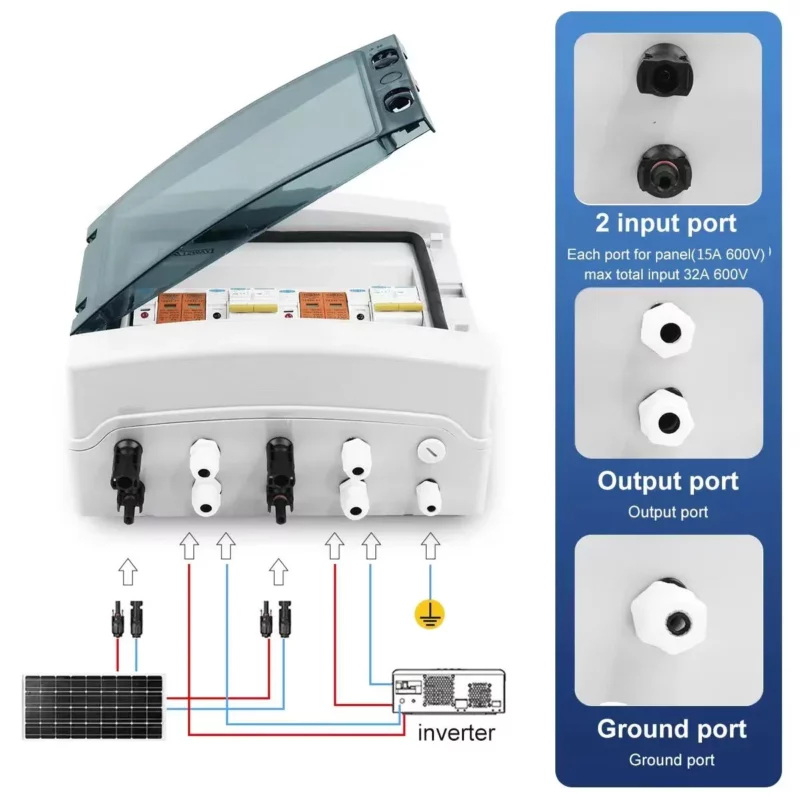

How It Works:

-Solar Panel DC output (1 string) is connected to the combiner box.

-The DC power flows through the fuse, then through the MCB, and finally through the SPD.

-The SPD protects the system by diverting sudden voltage spikes to ground.

-The combined and protected output is then sent to the inverter/charge controller.
